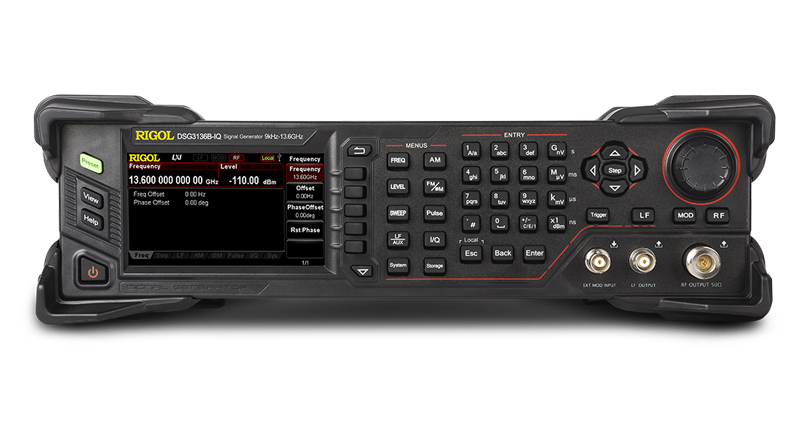

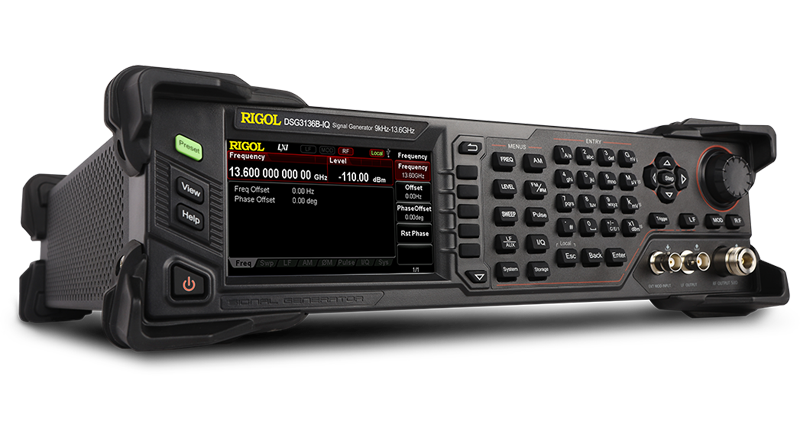

RIGOL RF Signal Generator DSG3136B-IQ

RIGOL RF Signal Generator DSG3136B-IQ

Max. Ferquency Range 9kHz~13.6GHz

Amplitude Indicators Range -110dBm~+20dBm

SSB Phase Noise <-116dBc/Hz@1GHz20KHz offset

Modulation Function AM/FM/ØM/Pulse/IQ

Amplitude Accuracy （Typical） <0.5dB

Standard Accessories

Quantity：

€16399.00 excl. VAT

€19514.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DSG3000B RF Signal Generator Model
Feature & Video
RF Signal Generator Accessories
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<p>9kHz - 13.6GHz frequency range, output amplitude range: -130 dBm to +13 dBm, amplitude accuracy: <0.5dB (typical), and standard AM/FM/ΦM analog modulation，EU Cable</p><p>------</p><ul>
<li>The highest frequency: 13.6 GHz</li>
<li>Amplitude accuracy: <0.5dB (typical)</li>
<li>Output amplitude range: -130 dBm to +27 dBm</li>
<li>High signal purity, phase noise: <-110dBc/Hz@20kHz (typical)</li>
<li>Standard 0.5ppm internal clock; 5ppb high stable clock for option</li>
<li>Standard AM/FM/ΦM analog modulation</li>
<li>Standard pulse modulation; on/off ratio up to 80dB; pulse train generator (optional)</li>
<li>I/Q modulation and I/Q baseband output</li>
<li>All modulation schemes support internal and external modulation modes</li>
<li>Standard 2U height design to save rack space. Rack mount kit is available</li>
<li>Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control</li>
<li>Wear-free electronic attenuator design</li>
<li>Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control</li>
</ul>

Model	Market Price	Price	Delivery	Max. Ferquency Range	Amplitude Indicators Range	SSB Phase Noise	Modulation Function	Amplitude Accuracy （Typical）
RIGOL RF Signal Generator DSG3136B	€11799.00	€11799.00		9kHz~13.6GHz	-110dBm~+20dBm	<-116dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse	<0.5dB
RIGOL RF Signal Generator DSG3136B-IQ	€16399.00	€16399.00		9kHz~13.6GHz	-110dBm~+20dBm	<-116dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse/IQ	<0.5dB
RIGOL RF Signal Generator DSG3065B-IQ	€10599.00	€10599.00		9kHz~6.5GHz	-110dBm~+20dBm	<-116dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse/IQ	<0.5dB
RIGOL RF Signal Generator DSG3065B	€7299.00	€7299.00	1 Month	9kHz~6.5GHz	-110dBm~+20dBm	<-116dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse	<0.5dB

Product Name	Market Price	Total	Delivery	Operation
PUG-DSG3000	€555.00	€555.00	1 Working Day	Add To Cart
RIGOL CB-BNC-BNC-MM-100	€15.00	€15.00	1 Week	Add To Cart
RIGOL CB-NM-SMAM-75-L-12G	€179.00	€179.00	1 Week	Add To Cart
RIGOL CB-NM-NM-75-L-12G	€179.00	€179.00	1 Week	Add To Cart
RIGOL ATT03301H	€209.00	€209.00	1 Week	Add To Cart
RIGOL RF Attenuator Kit	€469.00	€469.00	1 Week	Add To Cart
RIGOL RF Adaptor Kit	€279.00	€279.00	1 Week	Add To Cart

File Name	Version	Release Date	Operation
DSG3000B FIRMWARE	V00.01.02.00.00	4/30/2021	Download

File Name	Version	Release Date	Operation
Ultra IQ Station	V1.0	8/22/2020	Download
Ultra Sigma (PC)Installer	00.01.06.01	8/22/2019	Download
UltraSigma-HelpDocument	V1.0	8/22/2020	Download

Manual Download

File Name	Version	Release Date	Operation
DSG3000B_DateSheet	V1.0	9/30/2019	Download
DSG3000B_ProgrammingGuide	V1.0	9/30/2019	Download
DSG3000B_QuickGuide	V1.0	10/27/2021	Download
DSG3000B_UserGuide	V1.0	9/30/2019	Download
DSG3000_RackmountKit	V1.0	9/30/2019	Download
